📌 Mission Objective

As part of a fixed-bottom offshore wind farm development, the client entrusted us with the structural assessment of a transition piece (TP) during its offshore transportation onboard a dedicated vessel.

The objective was to evaluate the TP’s structural behavior under combined loading conditions, including wind forces and vessel-induced accelerations. The TP was secured to the deck using a dedicated anti-uplift system, which was included in the assessment scope.

🧠 Approach & Actions

• Review of of TP supplier and the marine transport contractor inputs (TP drawing, deck layout, vessel motion data, sea state conditions)
• Developed a full 3D CAD model of the transition piece in SolidWorks

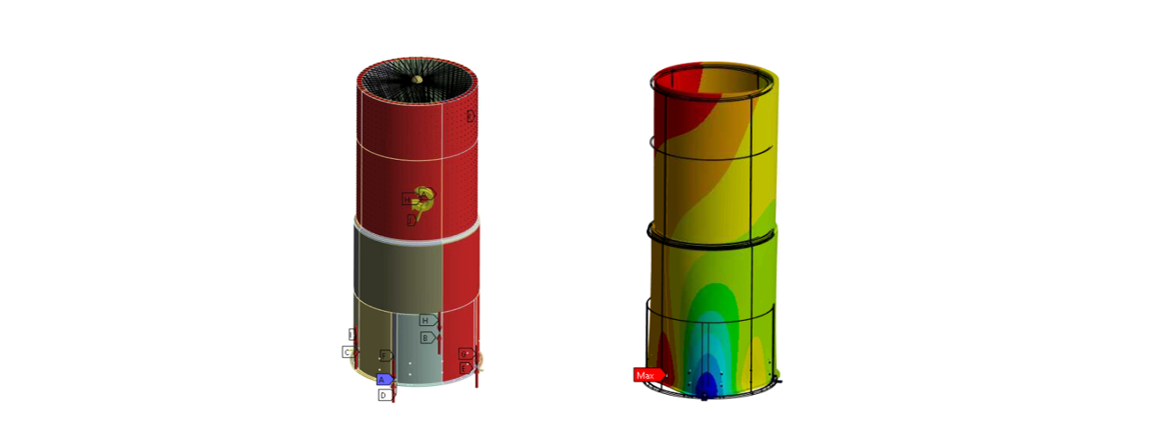

• Created and loaded a finite element model in Ansys
• Performed strength and buckling analyses under design load cases
• Checked for fatigue sensitivity during transport
• Assessed the efficiency of the anti-uplift system within the transport configuration

🗃️ Deliverables

• Structural analysis report
• Finite element model (Ansys project files)
• CAD files (SolidWorks)
• Calculation spreadsheets (Excel)

🛠️ Tools and Rules

• Standards: DNV-ST-0126, DNVGL-ST-N001, DNV-RP-C205, DNV-RP-C208
• Softwares: SolidWorks, Ansys Mechanical
